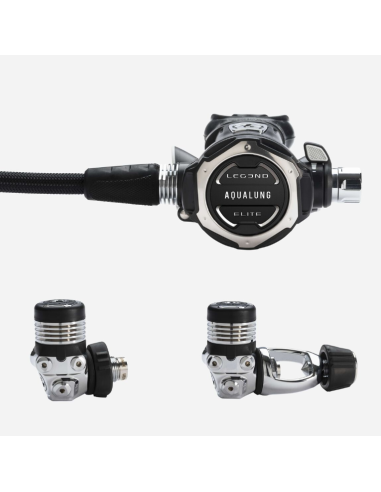

AquaLung Legend Elite Regulator

AquaLung Regulator Leg3nd Elite Din & Int

• When the first stage is not connected to a cylinder valve, the Auto Closure Device (ACD) keeps the inlet shut to protect the first stage internal parts from contamination and corrosive water.

• Exceptional cold-water performance is achieved by modernizing Aqualung's three anti-freeze properties:

• Where there's no moisture, there's no ice: The LEG3ND's integrated dry chamber keeps inner components clean and dry by isolating them from the outside environment

• Deep ribs create a large heat exchange surface area that helps to prevent ice forming on the mechanism (+30% vs Glacia / +70% vs Legend 2)

• The new overmolded cap delays ice forming over the external diaphragm

• Auto-Balanced (also known as Over-Balanced)

• Progressive increase of the working pressure to maintain optimum breathing efforts: Depending on the diver's depth, the working pressure of the first stage is automatically elevated to counteract the increased breathing air density

• Ergonomically shaped DIN and YOKE screws made of a bi-material “Soft Grip” surface provide a better hold when installing or removing the first stage – especially with cold hands

• Channeled YOKE screw to prevent water retention.

• Specialized ACD Dust cap attached to the regulator body to protect the inlet fitting and the ACD system from impacts or damage

• Perfectly positioned HP and MP ports provide optimal hose routing

• New front cover opening channels allow water to flow sideways over the diaphragm

• New overmolded exhaust cover made of elastomer with a “soft touch” effect

• Overmolded air purge

• • Wide surface area makes regulator purging easier
  • Purge depth controller optimizes air flow with minimal effort

• Patented Comfobite mouthpiece reduces jaw fatigue and secures the second stage more comfortably.

• Detachable and reusable mouthpiece clamp allows a quick and simple tool-free mouthpiece change without plastic waste.

• The enlarged heat exchanger helps to prevent freezing of the second stage mechanism

• Air channel deflector

• • Directs the air flow evenly during the inhalation phase
  • Streamlined bi-material deflector lowers the exhalation effort

• Flexible and lightweight Aqua Flex hose with dual protectors

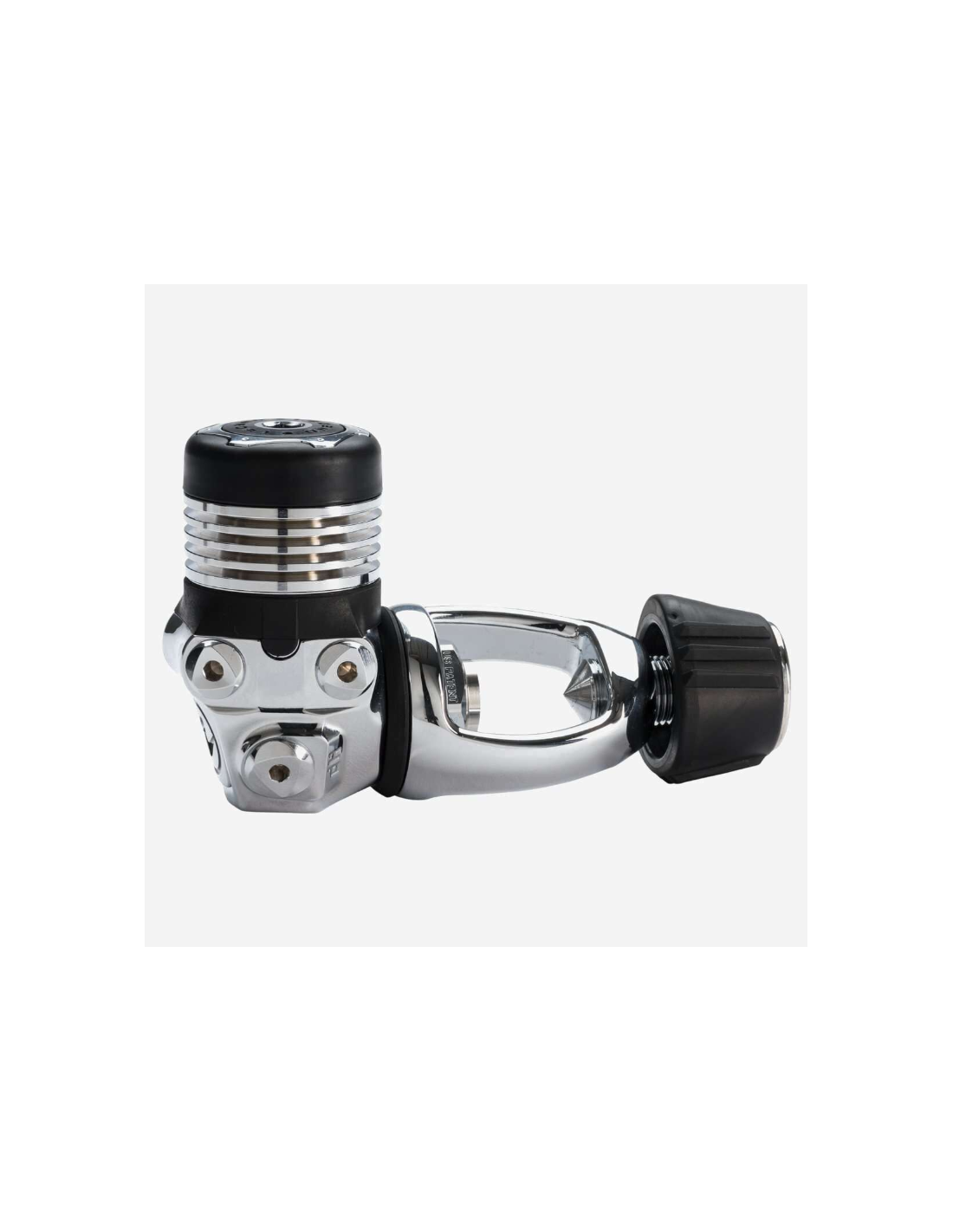

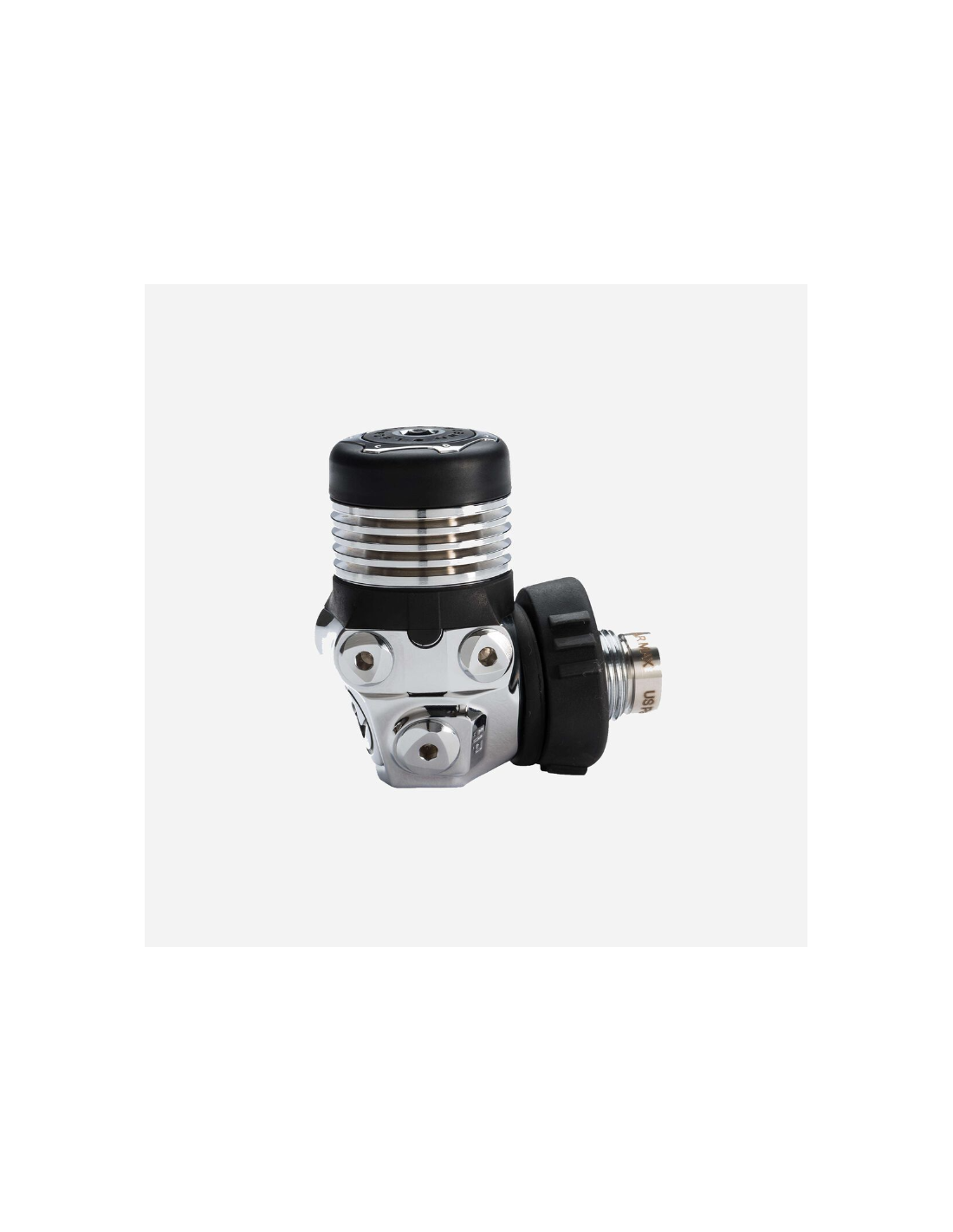

• Type of first stage                      Overbalanced diaphragm design
• Auto-Closure Device (ACD)     Yes
• Number of HP ports                   2
• Number of MP ports                  4
• 1st Stage Flow Rate                   1500 l/min
• 1st Stage Weight in DIN            747 g
• 1st Stage Weight in Yoke           957 g
• Environmental Dry Kit              Permanent
• First stage exterior                     Chrome over marine brass

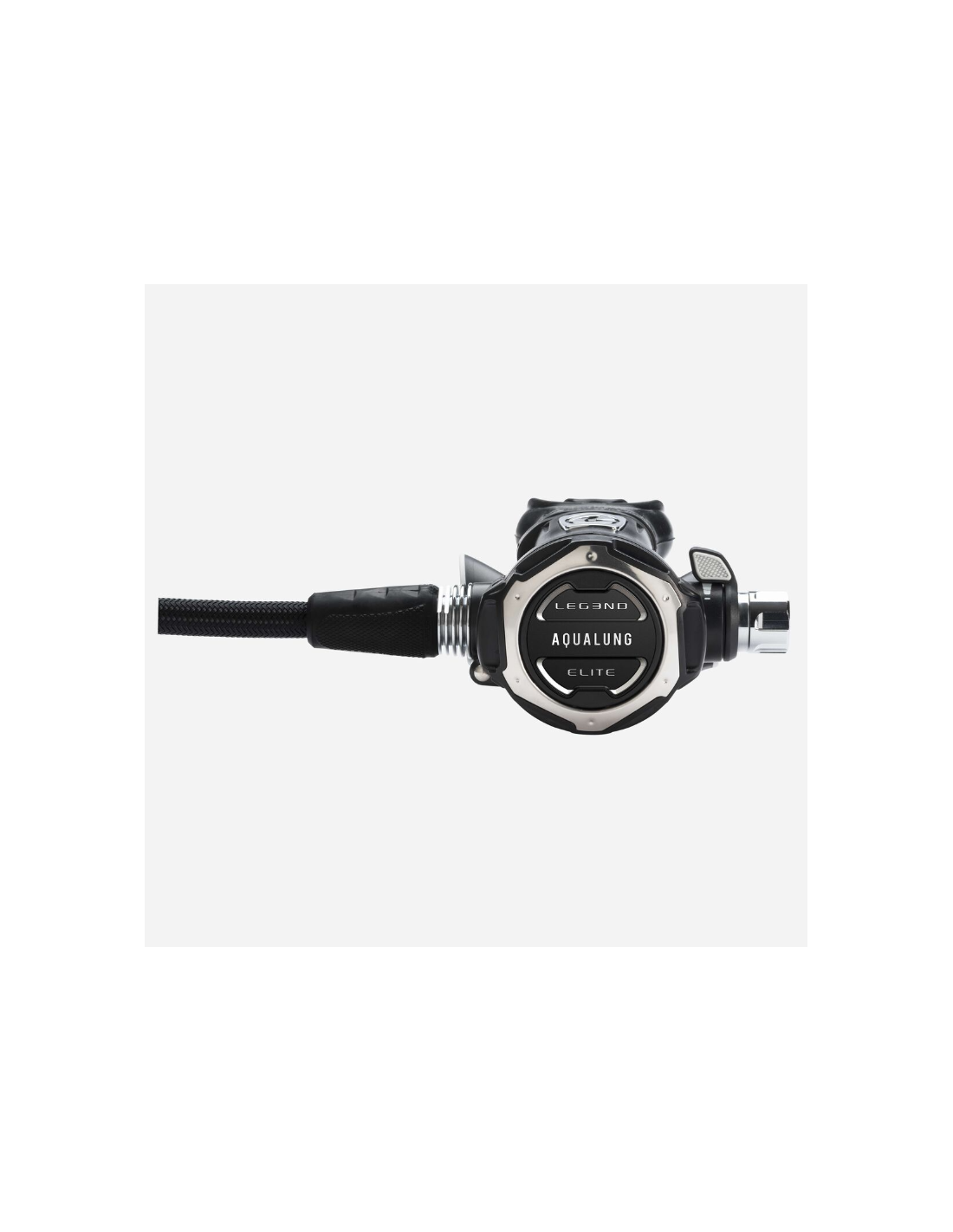

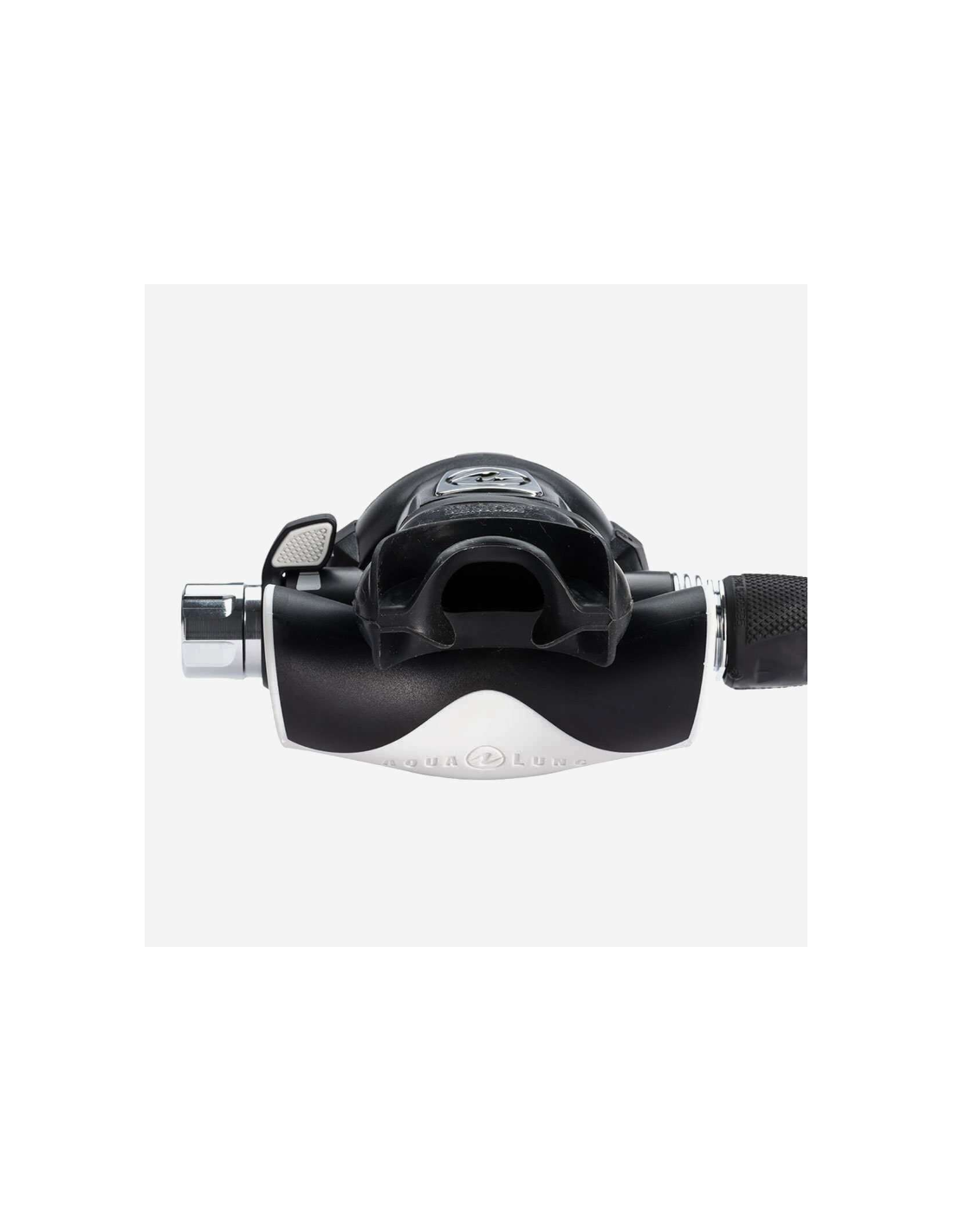

Second Stage

• Type of second stage                                    Pneumatically balanced
• Controls                                                        Venturi switch
• Breathing resistance                                     Adjsutable
• Mouthpieces                                                 2ea. – A Comfo-Bite, installed, and a standard with bite wings in the box
• Lip shield                                                      Included
• Heat Exchanger for freezing resistance       Standard on all models
• 2nd Stage Weight                                         227 g
• Hose length                                                  730 mm
• Overall work of breathing (WOB) scores    Avg. 0.70 joules/liter
• Nitrox compatible                                         Yes, to 40% O2 when new, out of the box
