GAMMA ALPHA HD - Delivery time approx. 45-60 day
The GAMMA ALPHA HD is a hardwired, full-duplex underwater audio and video communication system for conversations between the surface and one or two divers.
Product overview
GAMMA ALPHA HD is a hardwired, full‑duplex underwater audio and video communication system enabling clear, hands‑free conversations between the surface and one or two divers.
Product purpose
GAMMA ALPHA HD provides reliable, hardwired, full-duplex voice communication between the surface and up to two divers while delivering live video feeds from one or two diver-mounted AHD cameras with optional split-screen viewing. Additionally, it enables the recording and backup of mission audio and video, ensuring high-quality documentation for training and post-operation review.
Key features
• Team Coordination: Features full-duplex hardwired communication, allowing the surface to talk with one or two divers simultaneously, including a "crosstalk" mode for full team collaboration.
• High-Definition Monitoring: View live underwater footage on a 13” Full HD anti-reflective screen, featuring a split-screen option to monitor two divers at once.
• Built-in Professional Recording: Secure every mission with an internal DVR that records both audio and video, providing essential documentation for training and evidence.
• Seamless Data Backup: Easily back up your footage via USB to an external drive or connect directly to a PC or Mac for instant Plug & Play accessibility.
• Broadcast Ready: Share your dive live using the "Broadcast mode" via USB and HDMI outputs, perfect for remote monitoring or presentations.
• Rugged Versatility: Built for the field with a long-lasting rechargeable battery and support for professional cables extending up to 200 meters (600 ft).
Compatibility

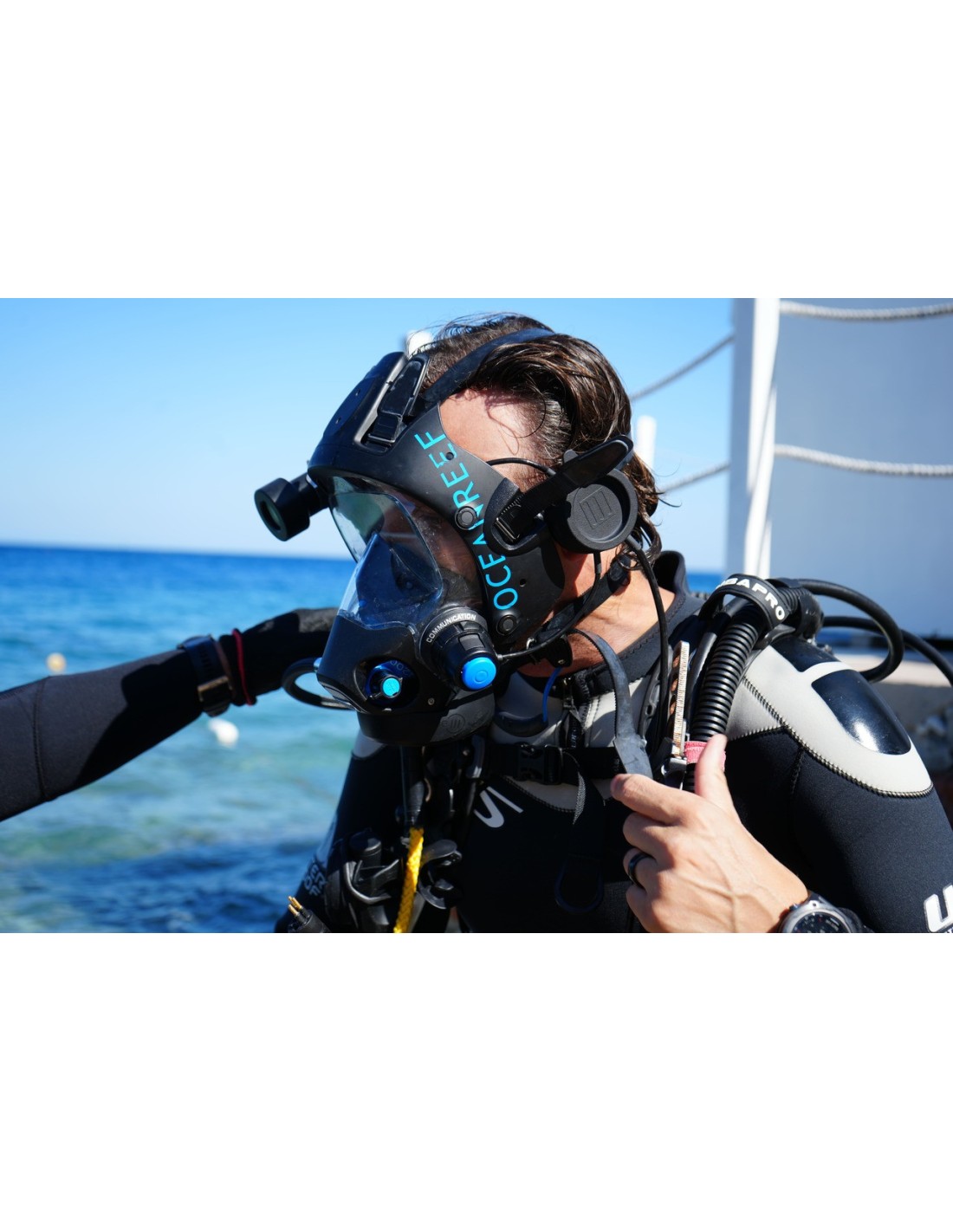

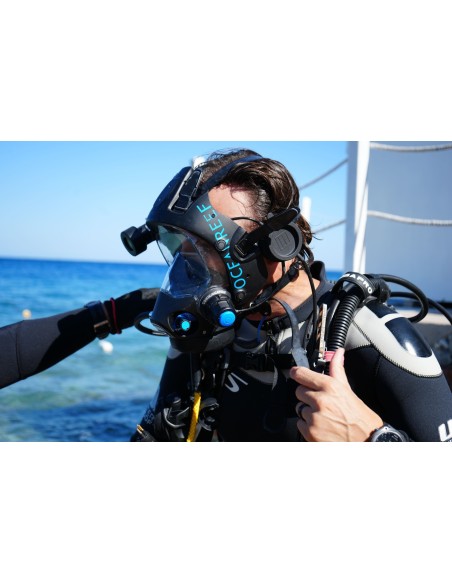

GAMMA ALPHA HD is engineered for exclusive use with the ALPHA PRO X-DIVERS underwater unit, which mounts to professional OCEAN REEF Full-Face Masks via Extender Frame/NACS.

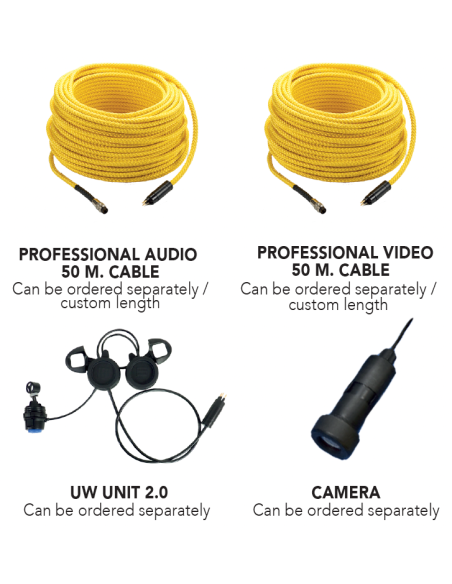

Inside the box

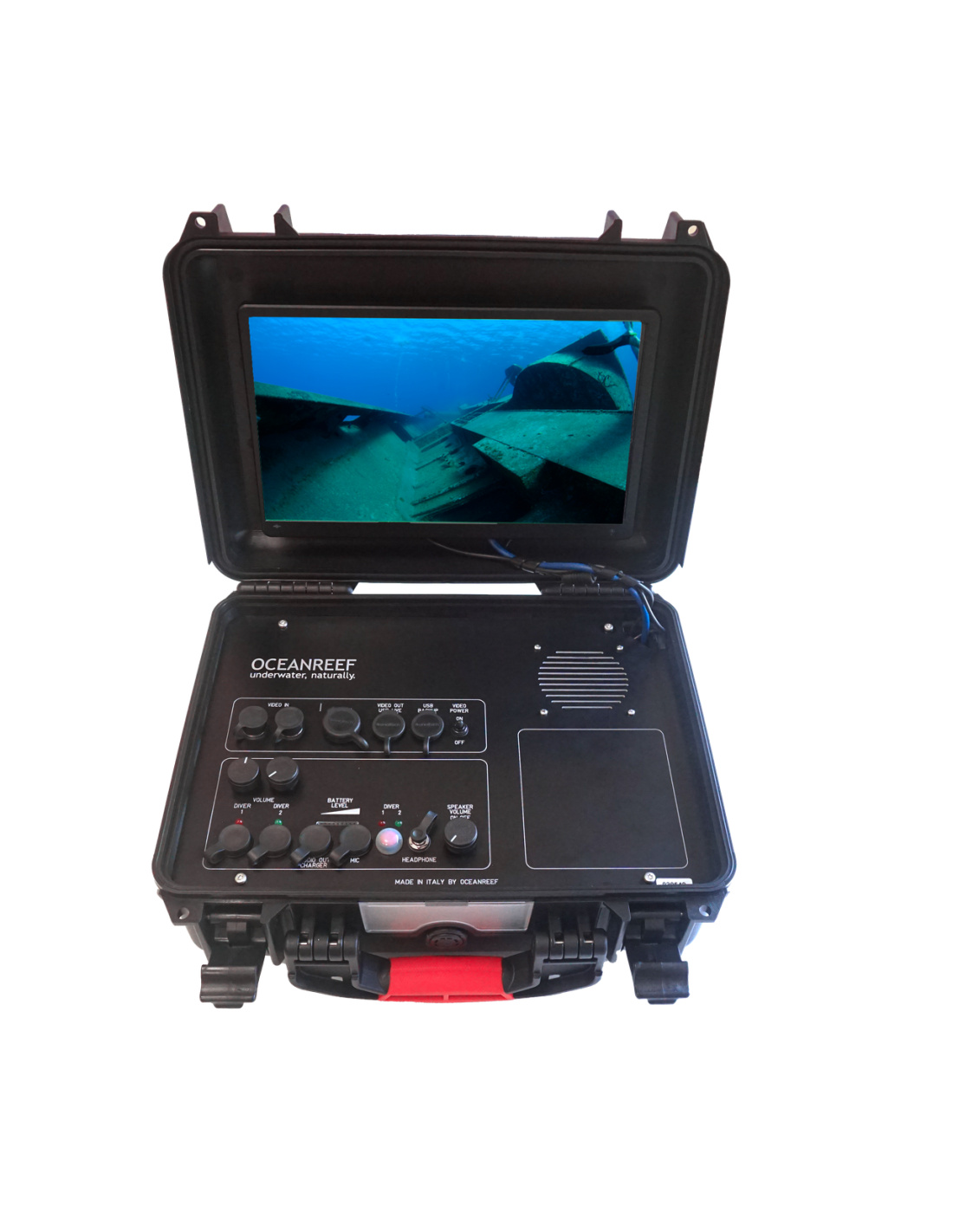

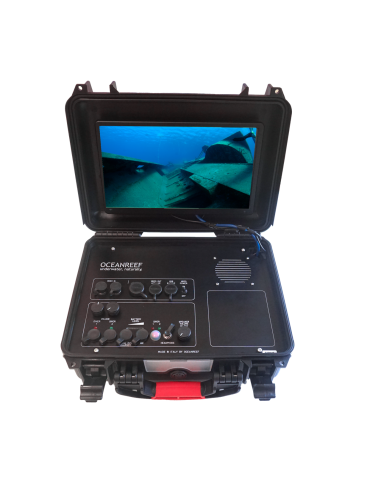

• Surface unit with integrated 13” monitor, DVR, speaker, mic input, headset port, HDMI, USB ports, and controls.

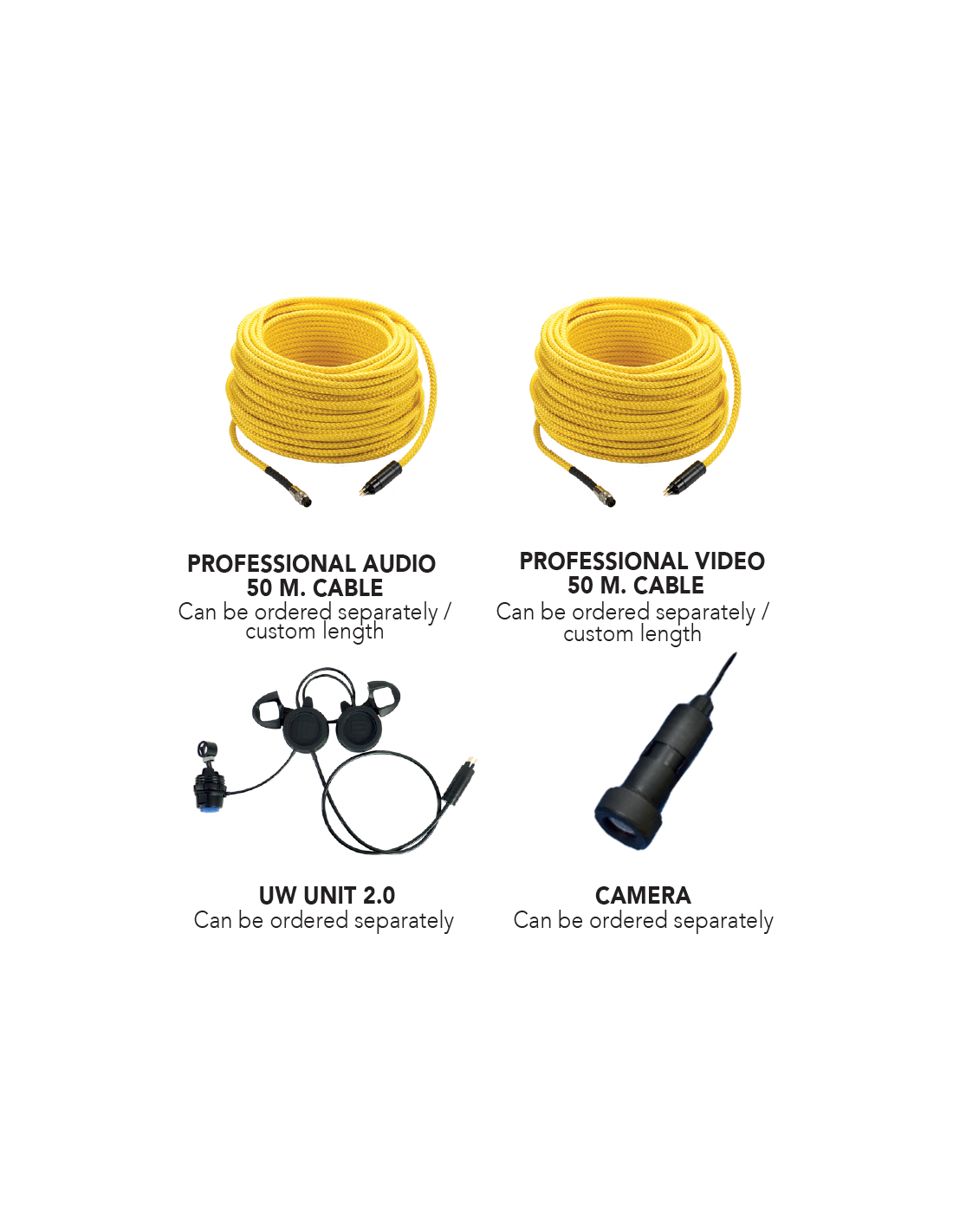

• Alpha Pro 2.0 hardwired underwater communication unit.
• Diver 2 to Computer audio adapter/cable.
• Professional audio cable, 50 m (165 ft).
• Professional video cable, 50 m (165 ft).
• AHD wide angle camera.

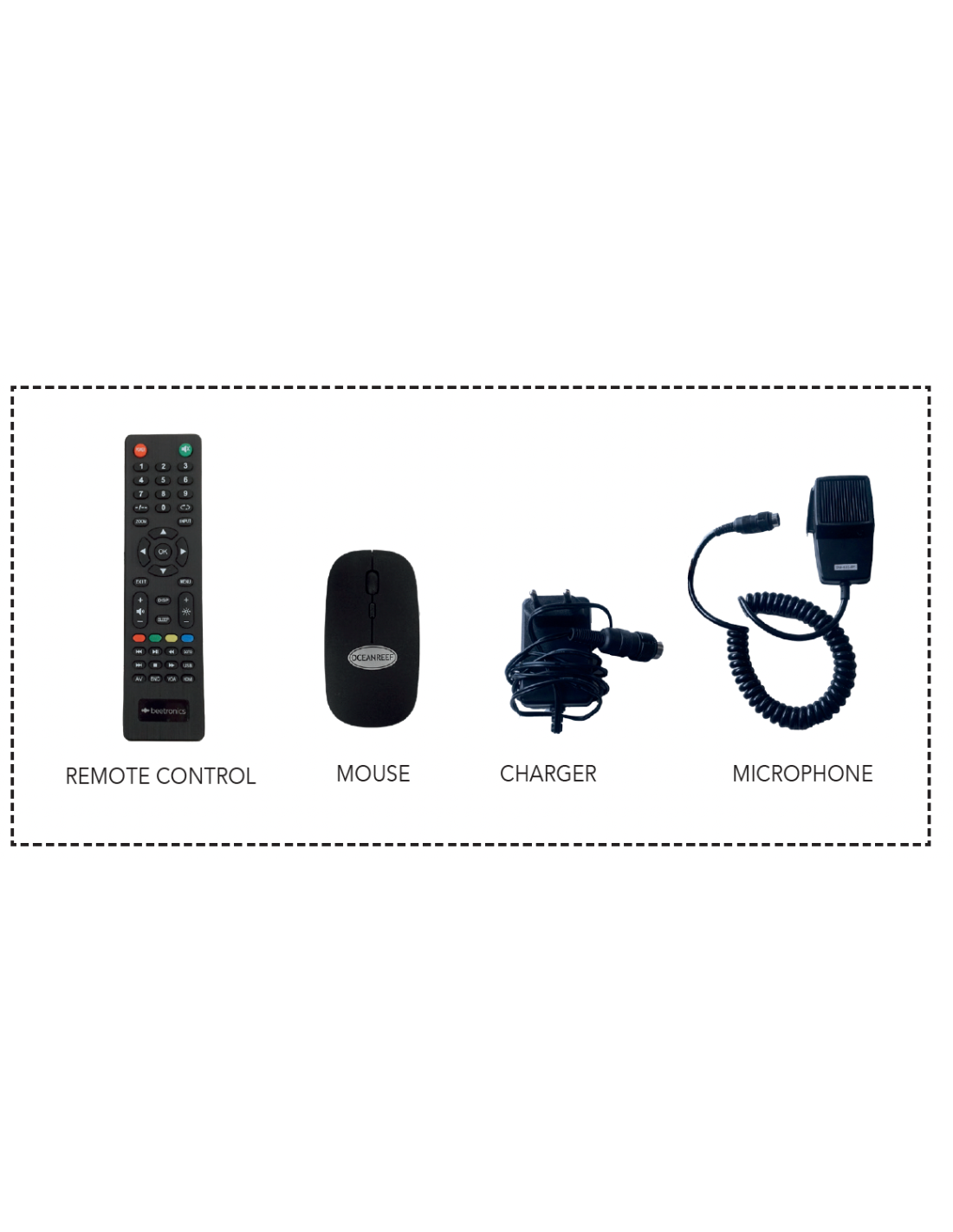

• Remote control (monitor) and mouse.
• 12 V charger.
• Microphone.
Technical Specifications
• 3” full HD backlit, anti-reflective screen.
• AHD 1080p wide angle Camera (120°)
• Possibility to split screen both camera for contemporary viewing.
• Digital audio/video out (HDMI).
• PC/Mac connection USB-A (not included) Plug & Play.
• Internal recording devices: programmable DVR with 320GB expandable to 1TB recording
both audio and video.
• Backup recording: digital audio+video via USB-A (pen drive or HDD not inlcuded).
• 12V rechargeable battery
• Audio/video recall
• Stand-by autonomy: 24h.
• Recharge total max time: 2h45m
• Battery duration 1video 1 audio 50m : 5h20m
• Battery duration 1video 1 audio 200m: 5h • Battery duration 2video 2 audio 200m: 4h30m
Warranty
2 years warranty
