Apeks TEK 3 Set With Gauge

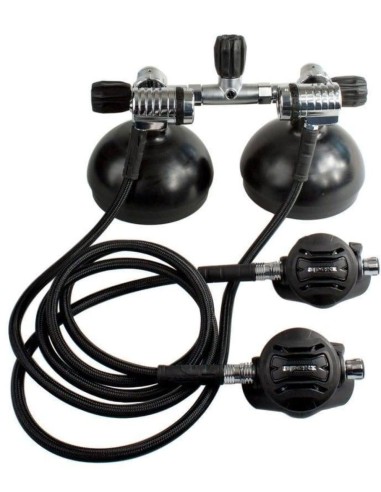

Set includes:
- TEK3 is sold as a complete set with: 1 ea. LH TEK3 first stage 1 ea.
- RH TEK3 first stage 2 ea.
- XTX50 second stages 1 ea.
- 2.1 metre hose (Synthetic rubber) 1 ea.
- 0.61 metre hose (Synthetic rubber)
- 1 ea. regulator necklace

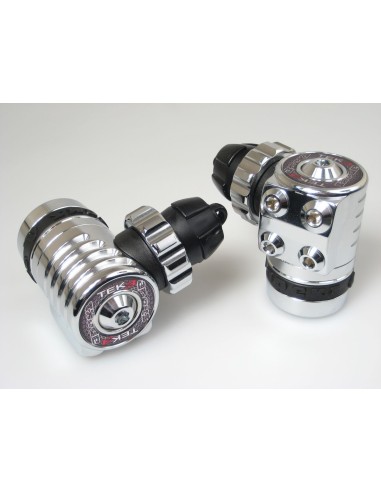

First Stage
Compact, solid one-piece body Unique over-balanced, diaphragm design - as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a rate faster than ambient. This results in superior performance at depth. 1 HP port and 3 MP ports are all angled downward. An environmental dry system keeps water out of the main spring chamber thus preventing ice buildup and keeping silt and contamination out. Maximum working pressure is 300 BAR (4350 psi).

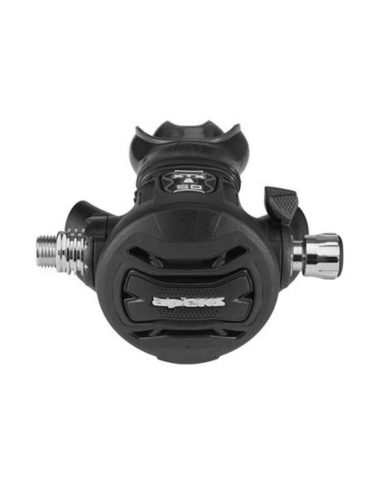

Second Stage
Pneumatically-balanced second stage results in smooth, easy breathing. The XTX purge buttons are large and easy to operate. A 2-stage progressive purge is used - press the purge on the side for a lower flow rate, useful where more control is required such as filling lift bags etc, then press in the centre for the full effect of the purge, i.e. when regulator clearing etc. The large venturi lever has a soft touch rubber grip, which makes it easier to locate and use. The lever reduces the amount of grit ingress and therefore resists any possible friction giving a smooth operation. Easy-to-grip opening effort control knob keeps the diver in control. The second stage is manufactured with active protection against infection as all molded parts are produced with an additive that kills MRSA, protects against E-Coli, bacteria and fungi, and is also very effective against viruses, mould, yeast and algae. A silicone exhaust valve improves the breathing performance of the regulator. The Comfo-bite™ mouthpiece virtually eliminates jaw-fatigue. A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water.
Specs
Connections DIN only Type of first stage Over-balanced diaphragm design, environmentally sealed Body Type Compact, solid one piece body Number of HP ports 1 (7/16" UNF) Number of MP ports 3 (3/8" UNF) Environmental Dry Kit Standard First stage exterior Chrome over marine brass Orientation Convertible LH or RH Coldwater Use Yes Type of second stage Pneumatically balanced Opening Effort Control Knob Yes Integrated Venturi Lever Yes Mouthpiece Comfo-bite™ Exhaust tee Diver Changeable - comes with 2 sets Heat Exchanger for freezing resistance Yes Overall work of breathing (WOB) scores Avg. 0.70 joules/liter Nitrox compatible Yes to 40% O2 when new, out of the box / Can be O2 cleaned to 100%.
